Inductive Sensor

BI10-M30-Y1X-H1141/S56

Order ID no. 4020201

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Connector type: M12 x 1

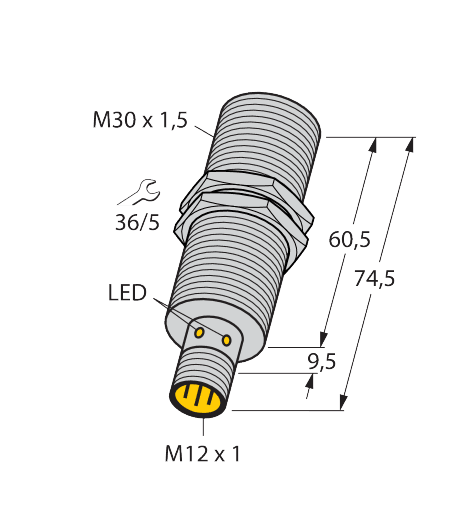

Construction size: ⌀ 30 mm
Design: Threaded barrel
Electrical connection: Connector
Housing material: Metal
Housing quality: CuZn
Housing surface: Chrome-plated
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 10
Switching frequency (kHz): 0.5
