Q45BB6FV | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

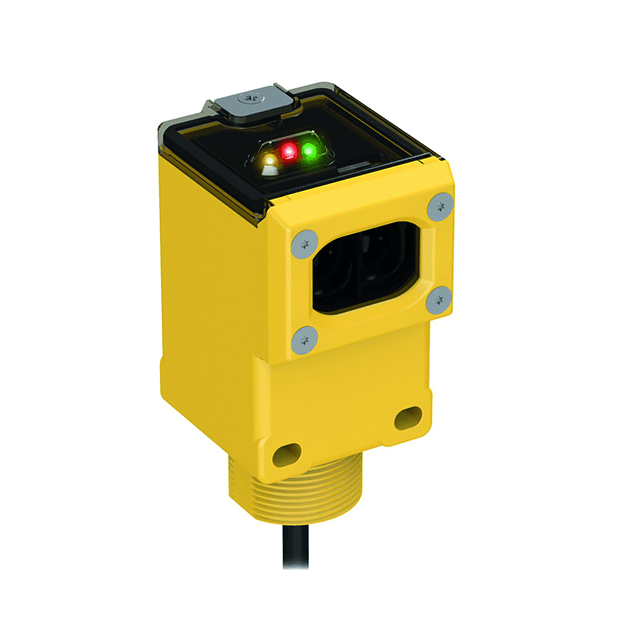

Photoelectric Sensor
Q45BB6FV
Order ID no. 3043545
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
Special features
keep/defer, Wash down
EAN/UPC code
662488435455
Gross weight
339
Height
65
Length
160
Net weight
339
Dimension unit
MMT
Weight unit
GRM
Volume
1.196
Volume unit
DMQ
Width
115
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular

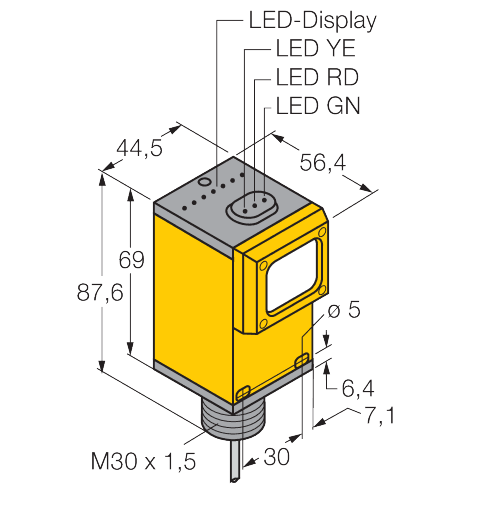

Dimensions
56,4 mm x 44,5 mm x 87,6 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
IR
Function
Fiber optic sensor
Operating mode
Glass fiber
Output function
PNP/NPN
Protection class
IP67
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
880
Key Features
Light type
IR
Function
Fiber optic sensor
Output function
PNP/NPN
In Stock
Price Group
F3
List Price
€180.00
