Q45BW22DXQ | TURCK - Your Global Automation Partner
Photoelectric Sensor
Q45BW22DXQ
Order ID no. 3047141
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
Special features
keep/defer
EAN/UPC code
662488471415
Gross weight
254
Height
0
Length
0
Net weight
254
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Electrical connection
Connector
Connector type
7/8″
Design
Rectangular
Construction size
⌀ 30 mm

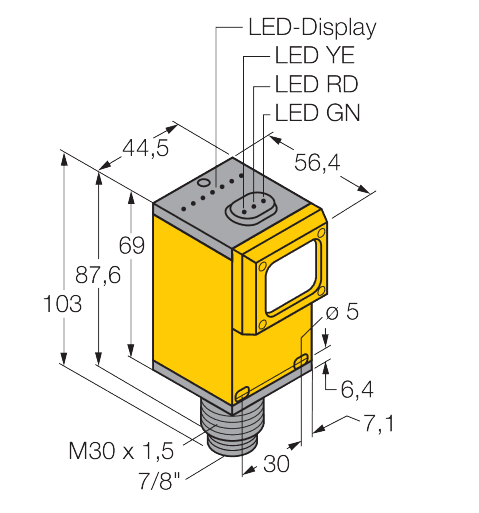

Dimensions
56,4 mm x 44,5 mm x 101,6 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
IR
Function
Proximity switch
Operating mode
Diffuse
Output function
Relay output
Protection class
IP67
Max. range (mm)
3000
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
880
Key Features
Light type
IR
Function
Proximity switch
Output function
Relay output
Max. range (mm)
3000
In Stock
Price Group
F3
List Price
€234.00
