Photoelectric Sensor
SM312LP W/30'
Order ID no. 3049770
In Stock
home
Turck-Shop
Sensors
Photoelectric Sensors
SM312LP W/30'
Technical Data
Downloads
Base unit
PCE
Special features
Encapsulated
EAN/UPC code
662488497705
Gross weight
578
Height
0
Length
0
Net weight
578
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
9
Electrical connection
Cable
Design
Rectangular with thread
Construction size
⌀ 18 mm

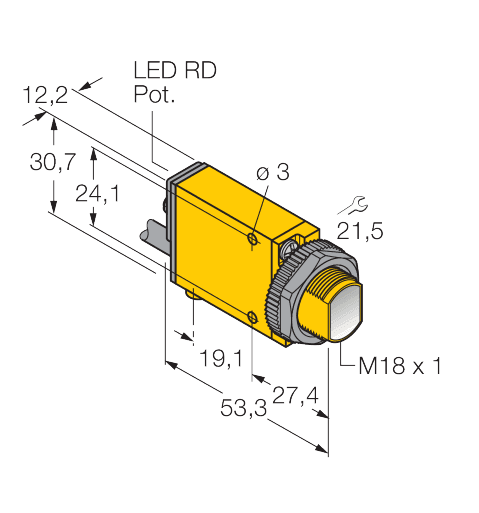

Dimensions
53,3 mm x 12,3 mm x 30,7 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
Red polarized
Function
Retroreflective Sensor
Operating mode
Polarized
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
3000
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
650
Key Features
Light type
Red polarized
Function
Retroreflective Sensor
Output function
PNP/NPN
Max. range (mm)
3000
Price Group
F3
List Price
€273.00
Item Total
€273.00
Quantity
−
+
