Photoelectric Sensor

M18SP6FF25Q

Order ID no. 3058433

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Connector type: M12 x 1

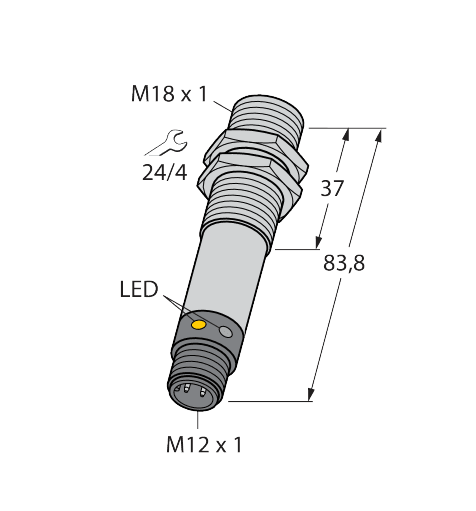

Construction size: ⌀ 18 mm
Design: Tube
Dimensions: 83,8 mm
Electrical connection: Connector
Function: Proximity switch
Housing material: Metal
Housing quality: Stainless steel
Light type: IR
Max. range (mm): 25
Operating mode: Background suppression, non-adjustable
Output function: PNP
Protection class: IP69
Special features: Chemical-resistant, Encapsulated, Resistant to chemicals, Wash down
Switching element function: Connection programmable
Wavelength (nm): 880
