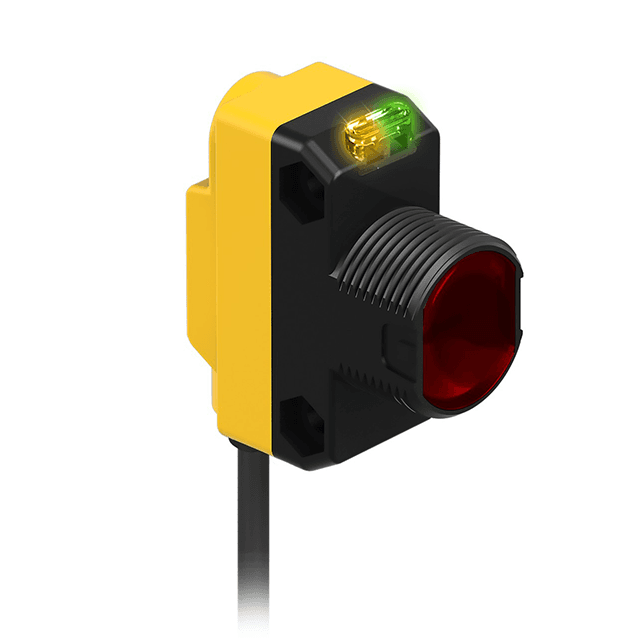

Photoelectric Sensor
QS18VP6RQ
Order ID no. 3061625
In Stock
Price Group
F3
List Price
€119.00
Item Total
€119.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488616250
Gross weight
52
Height
30
Length
140
Net weight
52
Dimension unit
MMT
Weight unit
GRM
Volume
378
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular with thread
Construction size
⌀ 18 mm
Dimensions
31 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Function
Opposed mode sensor
Operating mode
Receiver
Output function
PNP
Protection class
IP67
Max. range (mm)
20000
Switching element function
NO/NC
Key Features
Function
Opposed mode sensor
Output function
PNP
Max. range (mm)
20000
