Photoelectric Sensor
QS18VN6LVQ
Order ID no. 3061634
In Stock
Price Group
F3
List Price
€134.00
Item Total
€134.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488616342
Gross weight
27
Height
15
Length
150
Net weight
27
Dimension unit
MMT
Weight unit
GRM
Volume
247.5
Volume unit
CMQ
Width
110
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular with thread
Construction size
⌀ 18 mm

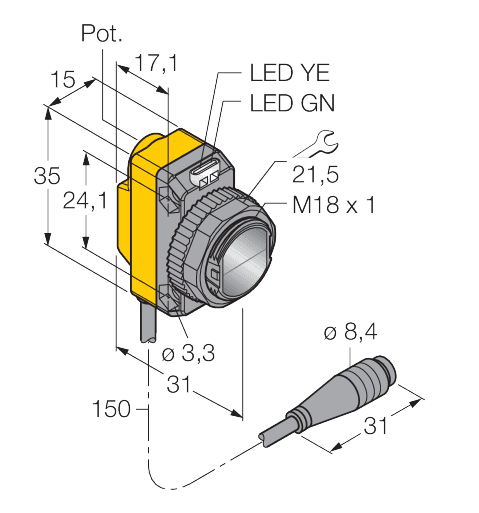

Dimensions
31 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Light type
Red
Function
Retroreflective Sensor
Operating mode
Unpolarized
Output function
NPN
Protection class
IP67
Max. range (mm)
6500
Setting option
Potentiometer
Switching element function
NO/NC
Wavelength (nm)
630
Key Features
Light type
Red
Function
Retroreflective Sensor
Output function
NPN
Max. range (mm)
6500
