Photoelectric Sensor
QS18VP6WQ
Order ID no. 3061661
In Stock
Price Group
F3
List Price
€134.00
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18VP6WQ
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488616618
Gross weight
49
Height
30
Length
140
Net weight
49
Dimension unit
MMT
Weight unit
GRM
Volume
378
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular

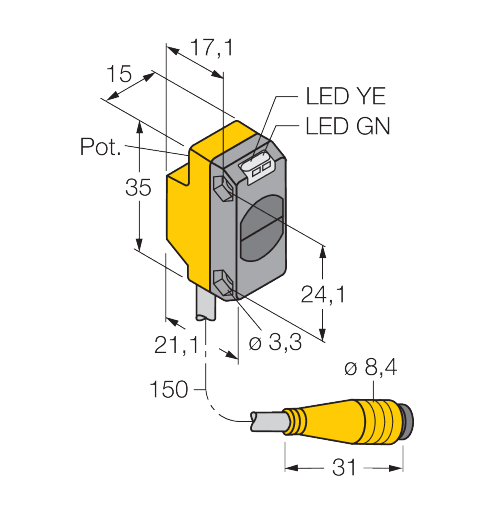

Dimensions
21,1 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Light type
IR
Function
Proximity switch
Operating mode
Divergent
Output function
PNP
Protection class
IP67
Max. range (mm)
100
Switching element function
NO/NC
Wavelength (nm)
940
Key Features
Light type
IR
Function
Proximity switch
Output function
PNP
Max. range (mm)
100
