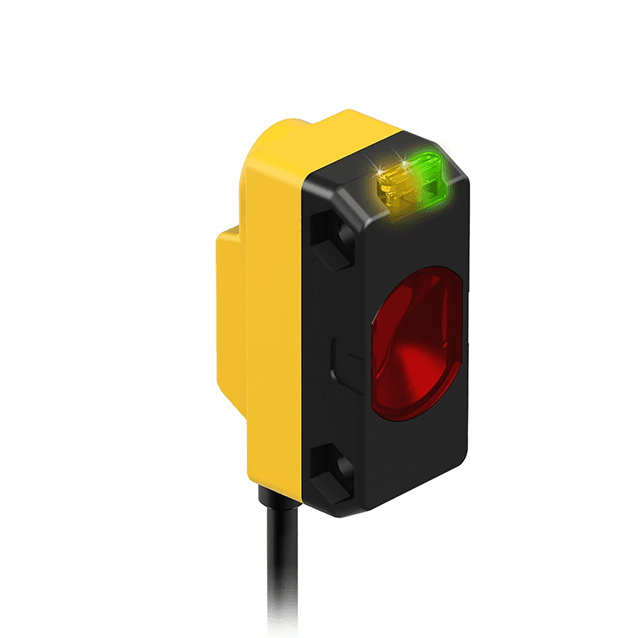

Photoelectric Sensor
QS18VN6RB
Order ID no. 3061669
In Stock
Price Group
F3
List Price
€102.00
Item Total
€102.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488616694
Gross weight
75
Height
30
Length
140
Net weight
75
Dimension unit
MMT
Weight unit
GRM
Volume
420
Volume unit
CMQ
Width
100
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular

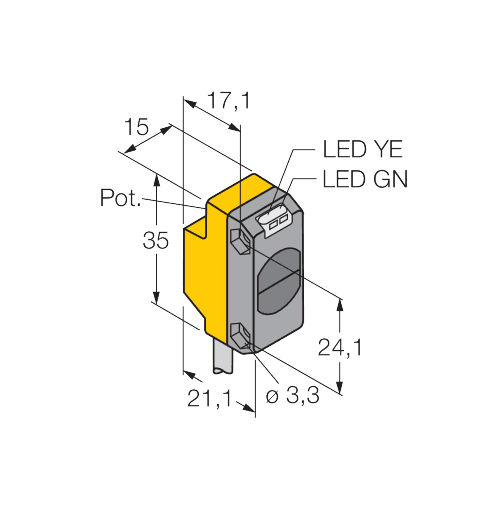

Dimensions
27,7 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Function
Opposed mode sensor
Operating mode
Receiver
Output function
NPN
Protection class
IP67
Max. range (mm)
3000
Switching element function
NO/NC
Key Features
Function
Opposed mode sensor
Output function
NPN
Max. range (mm)
3000
