Photoelectric Sensor
VS1AP5C20Q
Order ID no. 3063093
In Stock
Price Group
F3
List Price
€165.00
home
Turck-Shop
Sensors
Photoelectric Sensors
VS1AP5C20Q
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488630935
Gross weight
41
Height
30
Length
140
Net weight
41
Dimension unit
MMT
Weight unit
GRM
Volume
378
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular

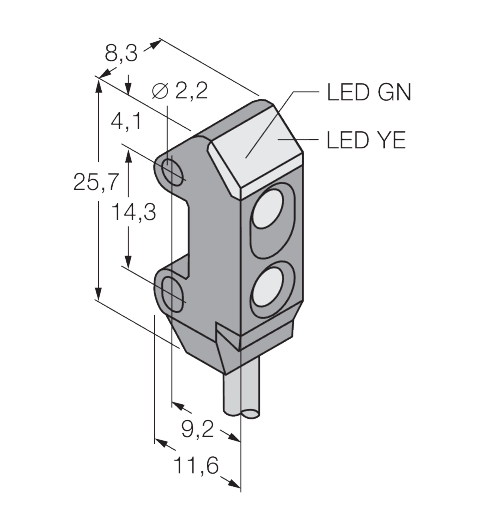

Dimensions
11,6 mm x 8,3 mm x 25,7 mm
Focal distance (mm)
15
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Black
Light type
IR
Function
Proximity switch
Operating mode
Convergent
Output function
PNP
Protection class
IP54
Max. range (mm)
20
Switching element function
NO contact
Wavelength (nm)
865
Key Features
Light type
IR
Function
Proximity switch
Output function
PNP
Max. range (mm)
20
