SMU31ELQDP | TURCK - Your Global Automation Partner
Photoelectric Sensor
SMU31ELQDP
Order ID no. 3067928
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488679286
Gross weight
117
Height
0
Length
0
Net weight
117
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
1/2″
Design
Rectangular with thread
Construction size
⌀ 18 mm

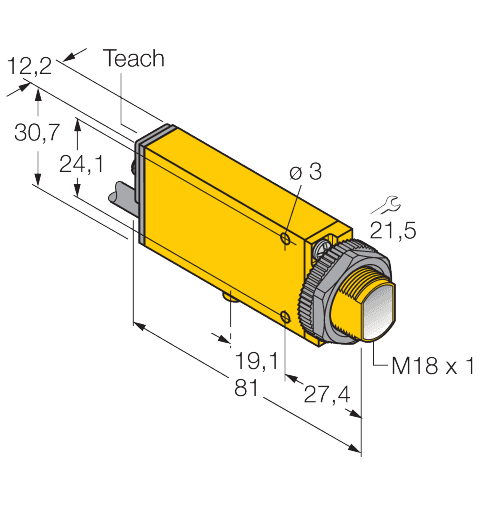

Dimensions
81 mm x 12,3 mm x 30,7 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
IR
Function
Opposed mode sensor
Operating mode
Emitter
Protection class
IP67
Max. range (mm)
30000
Setting option
Potentiometer
Wavelength (nm)
880
Key Features
Light type
IR
Function
Opposed mode sensor
Max. range (mm)
30000
In Stock
List Price
€188.00
Item Total
€188.00
Quantity
−
+
add_shopping_cart
Add to Cart
