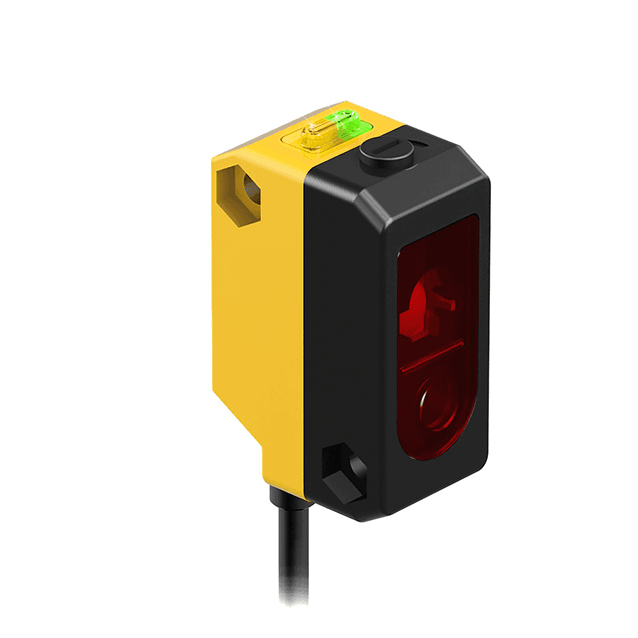

Photoelectric Sensor
QS18EP6DBQ
Order ID no. 3068752
In Stock
Price Group
F3
List Price
€134.00
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18EP6DBQ
Technical Data
Downloads
Base unit
PCE
Special features
keep/defer
EAN/UPC code
662488687526
Gross weight
50
Height
30
Length
140
Net weight
50
Dimension unit
MMT
Weight unit
GRM
Volume
378
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular

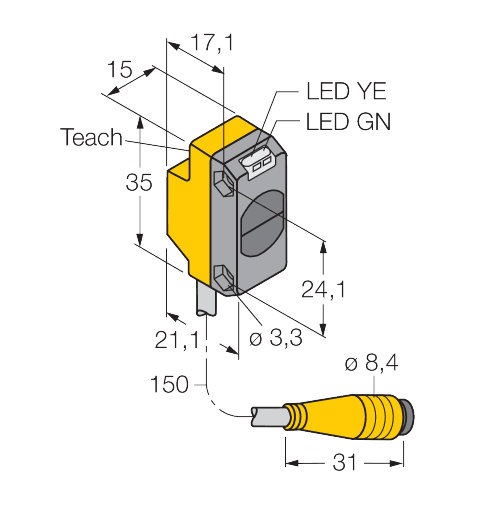

Dimensions
21,1 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Light type
IR
Function
Proximity switch
Operating mode
Diffuse
Output function
PNP
Protection class
IP67
Max. range (mm)
500
Setting option
Push Button, Remote Teach
Switching element function
NO contact
Wavelength (nm)
940
Key Features
Light type
IR
Function
Proximity switch
Output function
PNP
Max. range (mm)
500
Item Total
€134.00
Quantity
−
+
