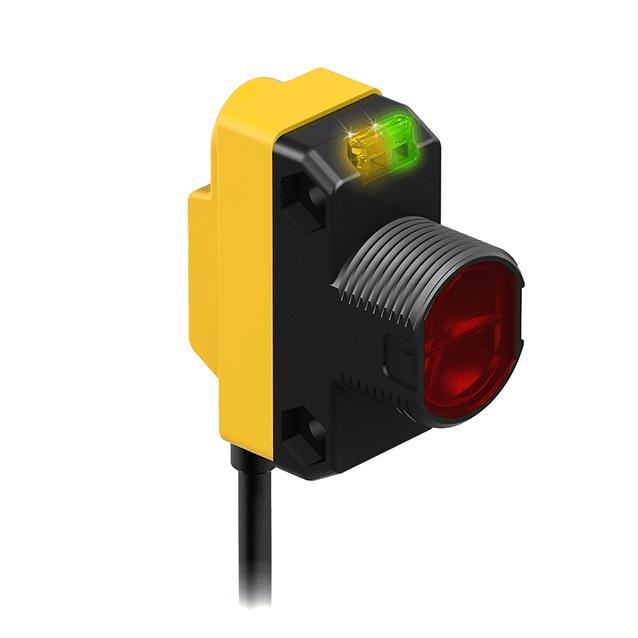

Photoelectric Sensor
QS18EP6D
Order ID no. 3069209
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
Special features
keep/defer
EAN/UPC code
662488692094
Gross weight
94.98
Height
30
Length
140
Net weight
94.98
Dimension unit
MMT
Weight unit
GRM
Volume
378
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular with thread
Construction size
⌀ 18 mm

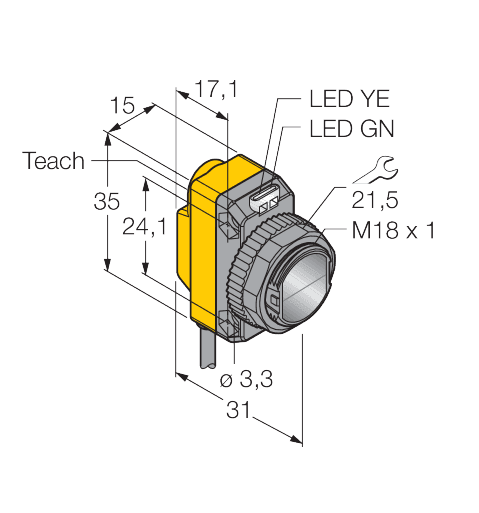

Dimensions
31 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Light type
IR
Function
Proximity switch
Operating mode
Diffuse
Output function
PNP
Protection class
IP67
Max. range (mm)
800
Setting option
Push Button, Remote Teach
Switching element function
NO contact
Wavelength (nm)
940
Key Features
Light type
IR
Function
Proximity switch
Output function
PNP
Max. range (mm)
800
In Stock
Price Group
F3
List Price
€117.00
