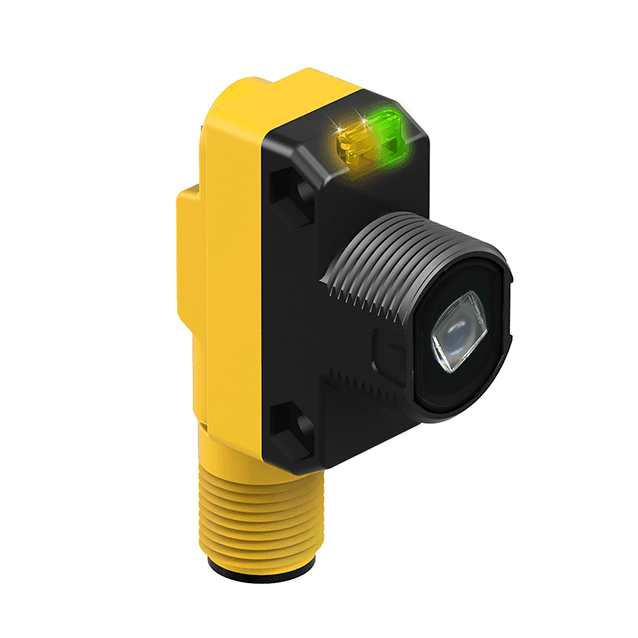

Photoelectric Sensor
QS186LEQ8
Order ID no. 3070253
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
Special features
Laser
EAN/UPC code
662488702533
Gross weight
22.68
Height
30
Length
140
Net weight
22.68
Dimension unit
MMT
Weight unit
GRM
Volume
378
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular with thread
Construction size
⌀ 18 mm

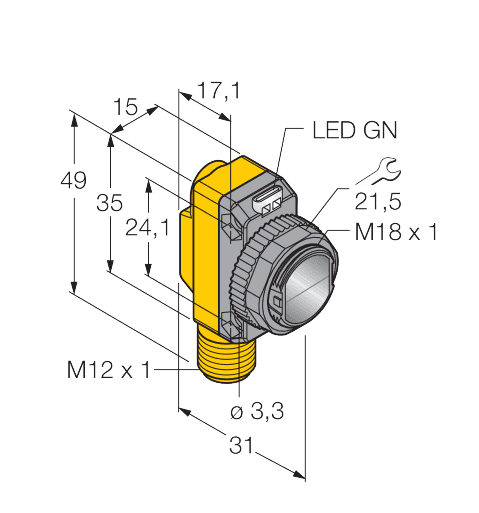

Dimensions
31 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Laser class
 1
Light type
Red
Function
Opposed mode sensor
Operating mode
Laser Emitter
Protection class
IP67
Max. range (mm)
15000
Wavelength (nm)
650
Key Features
Light type
Red
Function
Opposed mode sensor
Max. range (mm)
15000
In Stock
Price Group
F3
List Price
€122.00
