QS18EP6CV45Q8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

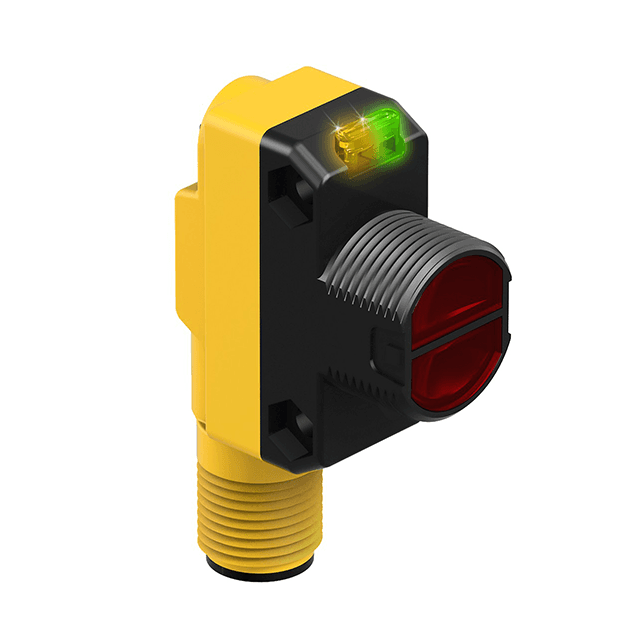

Photoelectric Sensor
QS18EP6CV45Q8
Order ID no. 3071989
home
Home
Loading...
Technical Data
Downloads
Special features
keep/defer
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular with thread
Construction size
⌀ 18 mm

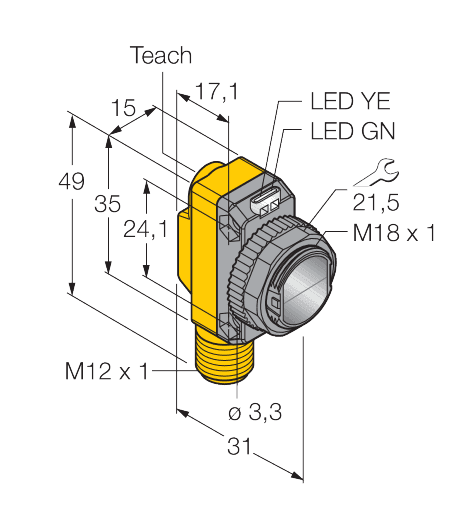

Dimensions
31 mm x 15 mm x 35 mm
Focal distance (mm)
43
Housing material
Plastic
Housing quality
ABS
Light type
Red
Function
Proximity switch
Operating mode
Convergent
Output function
PNP
Protection class
IP67
Max. range (mm)
43
Setting option
Push Button, Remote Teach
Switching element function
NO contact
Wavelength (nm)
630
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP
Max. range (mm)
43
In Stock
Price Group
F3
List Price
€117.00
