QS30EDVQ | TURCK - Your Global Automation Partner

Photoelectric Sensor

QS30EDVQ

Order ID no. 3076092

homeHome
Loading...

Ambient temperature max. (°C): 55
Ambient temperature min. (°C): -10
Connector type: M12 x 1
Construction size: ⌀ 30 mm
Design: Rectangular with thread

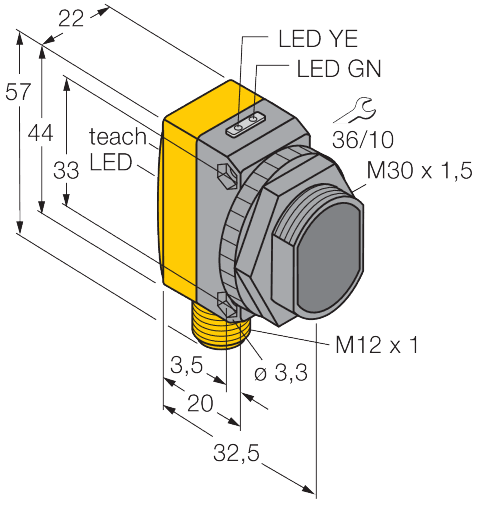

Dimensions: 35 mm x 22 mm x 57 mm
Electrical connection: Connector
Function: Proximity switch
Housing material: Plastic
Housing quality: Thermoplastic material
Housing surface: Yellow
Light type: Red
Max. range (mm): 1400
Operating mode: Diffuse
Output function: PNP/NPN
Protection class: IP67
Setting option: Push Button, Remote Teach
Special features: keep/defer
Switching element function: NO contact
Wavelength (nm): 660

Key Features

Light type: Red
Function: Proximity switch
Output function: PNP/NPN
Max. range (mm): 1400

In Stock
Price Group	F3
List Price	€239.00
