M12PFF50Q8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

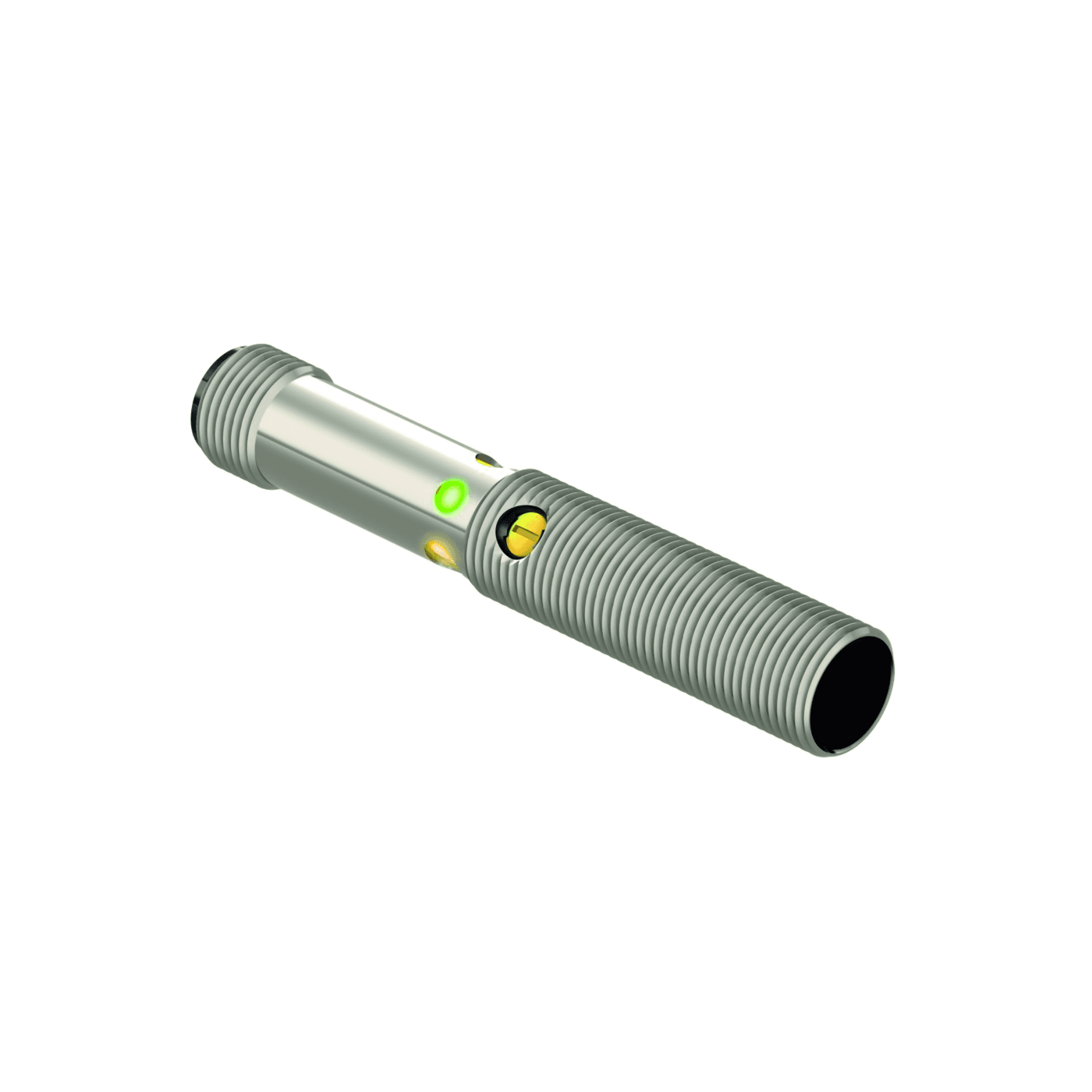

Photoelectric Sensor
M12PFF50Q8
Order ID no. 3077195
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Connector type
M12 x 1
Construction size
⌀ 12 mm
Design
Tube

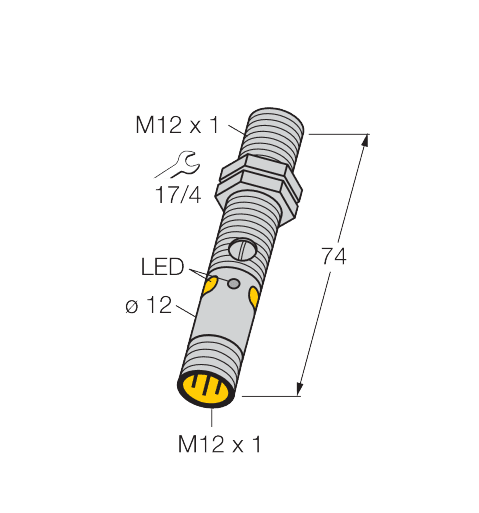

Dimensions
74 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Metal
Housing quality
Nickel-plated brass
Housing surface
Nickel Plated
Light type
Red
Max. range (mm)
50
Operating mode
Background suppression, non-adjustable
Output function
PNP
Protection class
IP67, IP68
Special features
Encapsulated, Wash down
Switching element function
Complementary contact
Wavelength (nm)
680
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP
Max. range (mm)
50
