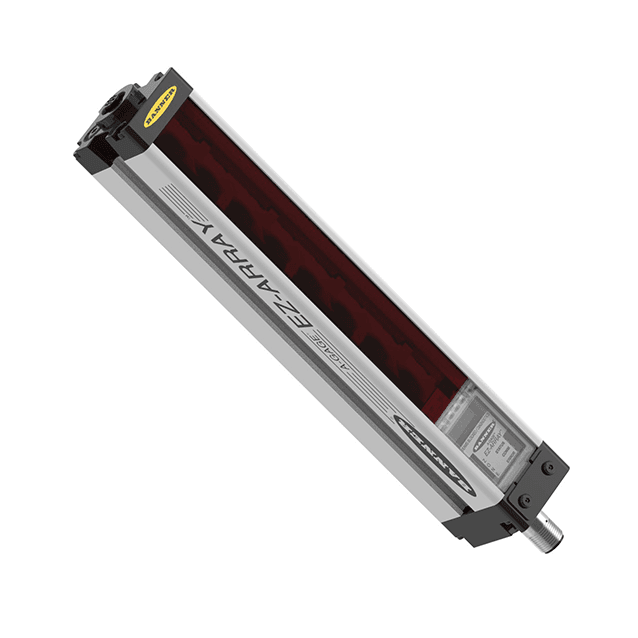

Measuring Light Screen
EA5R1200PIXMODQ
Order ID no. 3077534
In Stock
Price Group
F3
List Price
€2,441.00
Item Total
€2,441.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488775346
Gross weight
4902
Height
150
Length
1555
Net weight
4902
Dimension unit
MMT
Weight unit
GRM
Volume
34.987
Volume unit
DMQ
Width
150
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Communication protocol
Modbus RTU, RS485
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
1200

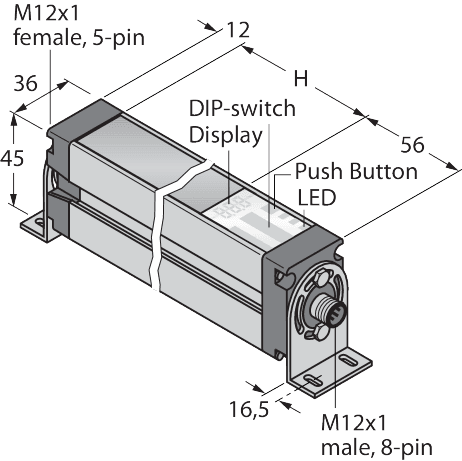

Dimensions
45,2 mm x 36 mm x 1278 mm
Housing material
Metal
Housing quality
AL
Housing surface
Anodized
Number of beams
240
Function
Light screen
Operating mode
Receiver
Optical resolution (mm)
5
Output function
PNP/Analog output
Protection class
IP65
Max. range (mm)
4000
Switching element function
2 x NO contact
Key Features
Function
Light screen
Output function
PNP/Analog output
Max. range (mm)
4000
