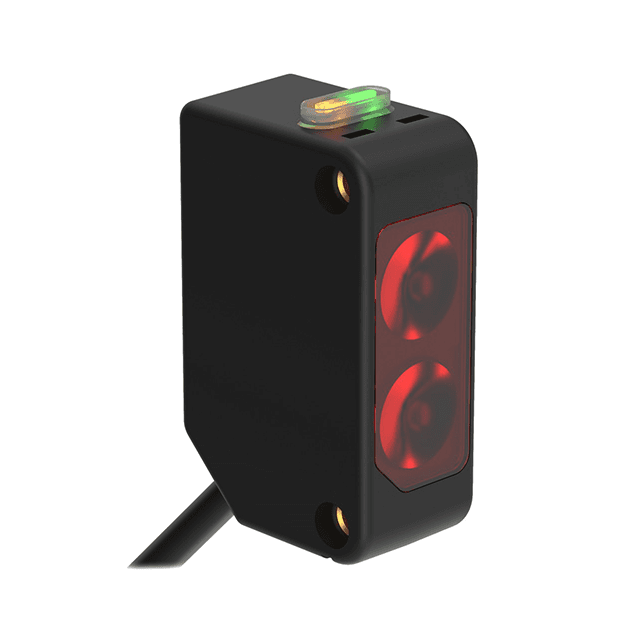

Photoelectric Sensor
Q20PFF50
Order ID no. 3077769
In Stock
Price Group
F3
List Price
€125.00
Item Total
€125.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488777692
Gross weight
47
Height
10
Length
150
Net weight
47
Dimension unit
MMT
Weight unit
GRM
Volume
150
Volume unit
CMQ
Width
100
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular

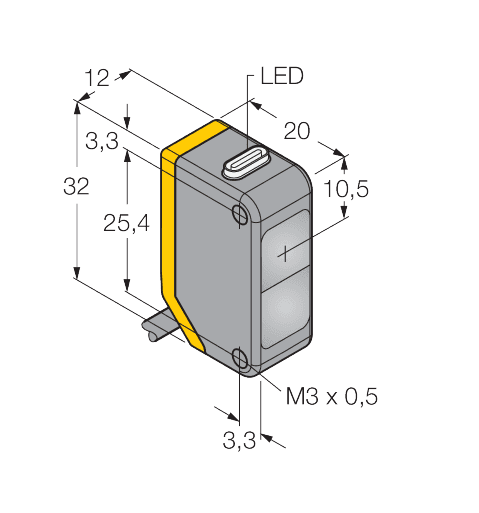

Dimensions
20 mm x 12 mm x 32 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
Red
Function
Proximity switch
Operating mode
Background suppression, non-adjustable
Output function
PNP
Protection class
IP67
Max. range (mm)
50
Switching element function
Complementary contact
Wavelength (nm)
655
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP
Max. range (mm)
50
