Photoelectric Sensor
VS2AN5CV30Q5
Order ID no. 3077798
In Stock
Price Group
F3
List Price
€145.00
Item Total
€145.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
VS2AN5CV30Q5
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488777982
Gross weight
45
Height
0
Length
0
Net weight
45
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular

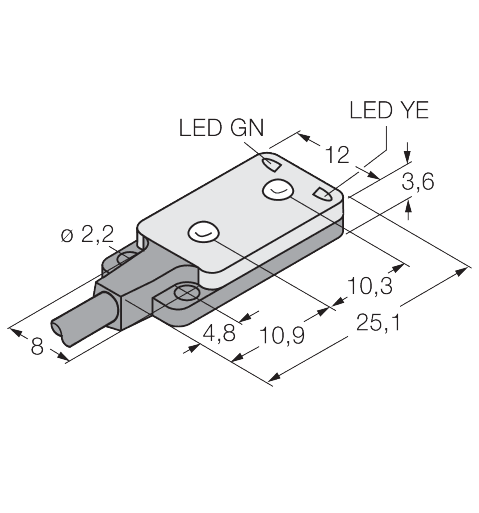

Dimensions
4,7 mm x 12 mm x 25,1 mm
Focal distance (mm)
30
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
Red
Function
Proximity switch
Operating mode
Convergent
Output function
NPN
Protection class
IP67
Max. range (mm)
30
Switching element function
NO contact
Wavelength (nm)
660
Key Features
Light type
Red
Function
Proximity switch
Output function
NPN
Max. range (mm)
30
