Photoelectric Sensor

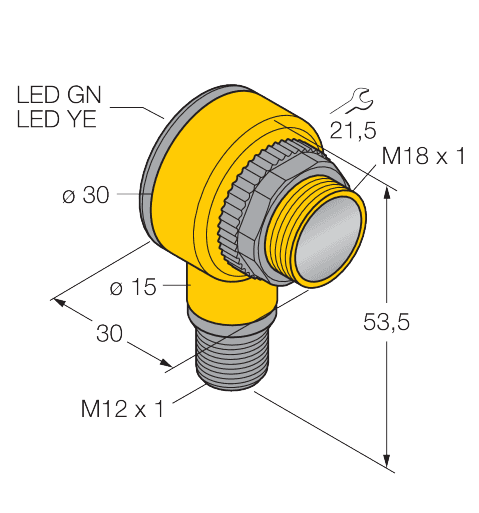

T18-2VNLPC-Q8

Order ID no. 3802631

Base unit: PCE
Special features: Chemical-resistant, Encapsulated, Wash down, Resistant to chemicals
EAN/UPC code: 662488018252
Gross weight: 31.75
Height: 0
Length: 0
Net weight: 31.75
Dimension unit: MMT
Weight unit: GRM
Volume: 0
Width: 0
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Electrical connection: Connector
Connector type: M12 x 1
Design: Tube
Dimensions: 30 mm x 30 mm x 54 mm
Housing material: Plastic
Housing quality: Thermoplastic material
Light type: Red polarized
Function: Retroreflective Sensor
Operating mode: Polarized
Output function: NPN
Protection class: IP67, IP68, IP69
Max. range (mm): 5500
Setting option: Potentiometer
Switching element function: Complementary contact
Wavelength (nm): 624
