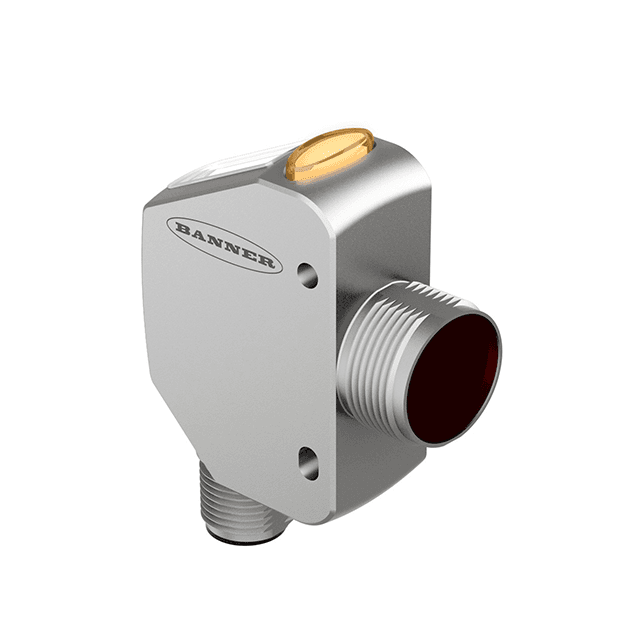

Photoelectric Sensor
Q4XTILAF500-Q8
Order ID no. 3802751
In Stock
home
Turck-Shop
Sensors
Photoelectric Sensors
Q4XTILAF500-Q8
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Connector type
M12 x 1
Design
Rectangular with thread

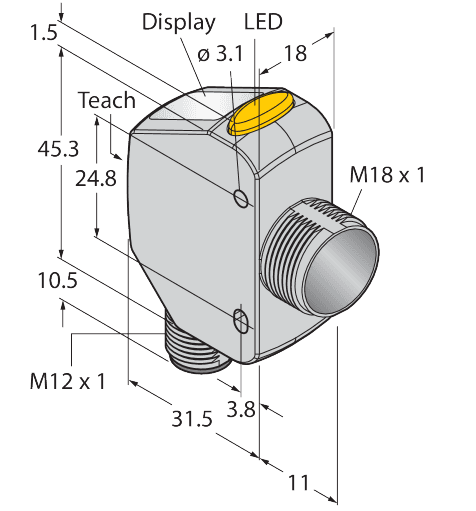

Dimensions
43,5 mm x 18 mm x 57,5 mm
Display
4-digit 7-segment LED display
Electrical connection
Connector
Function
Proximity switch
Housing material
Metal
Housing quality
Stainless steel
Laser class
 1
Light type
Red
Max. range (mm)
500
Operating mode
Background/foreground suppression
Optical resolution (mm)
1
Output function
Analog output
Protection class
IP67, IP68, IP69
Special features
Chemical-resistant, Resistant to chemicals, Wash down
Wavelength (nm)
655
Key Features
Light type
Red
Function
Proximity switch
Output function
Analog output
Max. range (mm)
500
Price Group
F3
List Price
773,00 EUR
Item Total
773,00 EUR
