LM150KUQP | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric sensor Diffuse-mode laser sensor (triangulation)
LM150KUQP
Order ID no. 3810151
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Approvals
CE, cULus
Cable length (m)
0.3
Communication protocol
IO-Link
Connector type
M12 x 1
Design
Rectangular

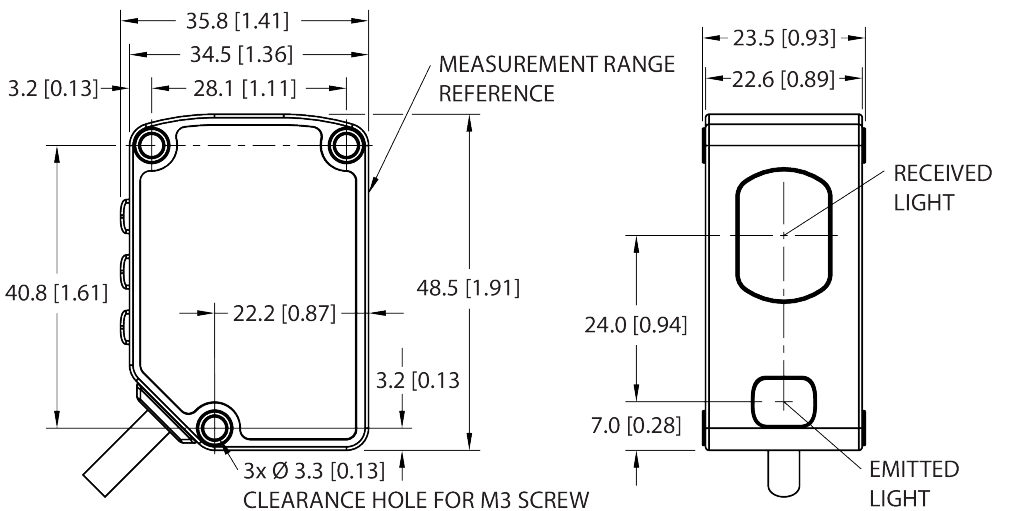

Dimensions
35,8 mm x 23,5 mm x 48,5 mm
Electrical connection
Cable with connector
Function
Proximity switch
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Housing surface
Grey
Laser class
2
Light type
Red
Max. range (mm)
150
Operating mode
Triangulation
Optical resolution (mm)
0.004
Output function
PNP/NPN, analog output
Protection class
IP67
Special features
Resistant to chemicals
Switching element function
NO contact
Wavelength (nm)
655
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP/NPN, analog output
Max. range (mm)
150
In Stock
Price Group
F3
List Price
1507,00 EUR
