Pressure Transmitter

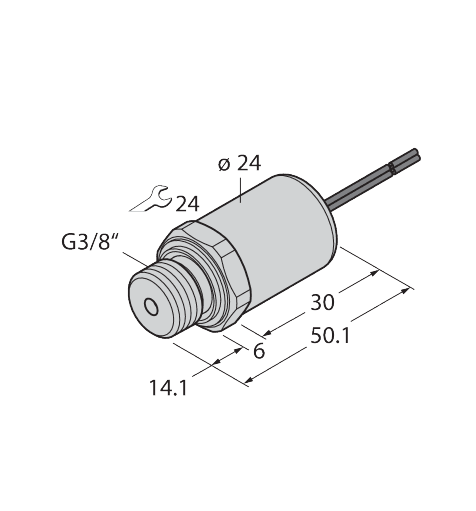

PT600R-2049-I2-WM0.5/X
Order ID no. 100001180
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101449051
Electrical output
Current output (2-wire)
Gross weight
1.1
Height
0
Length
0
Net weight
1
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Approvals
cULus
Electrical connection
Stranded wires
Connector type
Open end
Design
Without display
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer
Stainless steel 1.4435 (AISI 316L)
Process connection
G 3/8'' male thread
Media temperature max. (°C)
135
Media temperature min. (°C)
-40
Pressure range
0...600 bar
Operating voltage
DC
Output function
Analog output current
Pressure type
Relative pressure
Protection class
IP65
home
Turck-Shop
Sensors
Pressure Sensors
PT600R-2049-I2-WM0.5/X
Key Features
Electrical output
Current output (2-wire)
Process connection
G 3/8'' male thread
In Stock
Price Group
J1
List Price
€144.00
Item Total
€144.00
Quantity
−
+
