Temperature Detection

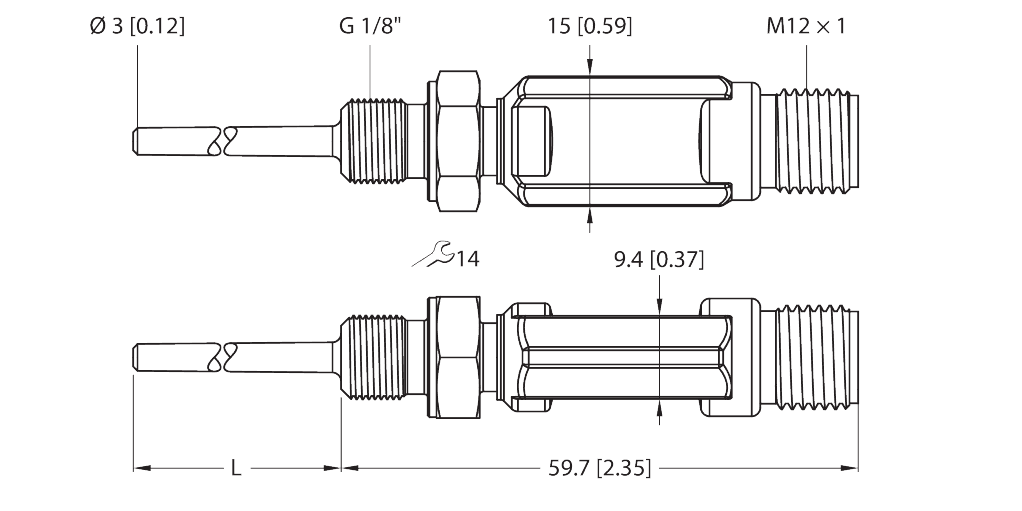

TTM100C-103A-G1/8-LI6-H1140-L013
Order ID no. 9910549
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101249354
Detection type
medium contact
Gross weight
34
Height
10
Length
90
Net weight
34
Dimension unit
MMT
Weight unit
GRM
Volume
45
Volume unit
CMQ
Width
50
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-40
Electrical connection
Connector
Connector type
M12 x 1
Design
Without display (integrated probe)
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)
Immersion depth L (mm)
13
Process connection
G 1/8'' male thread
Mounting conditions
Immersion sensor
Measuring range
0...100 °C
Operating voltage
DC
Protection class
IP67
Key Features
home
Turck-Shop
Sensors
Temperature Sensors
TTM100C-103A-G1/8-LI6-H1140-L013
Process connection
G 1/8'' male thread
In Stock
Price Group
D2
List Price
€101.00
