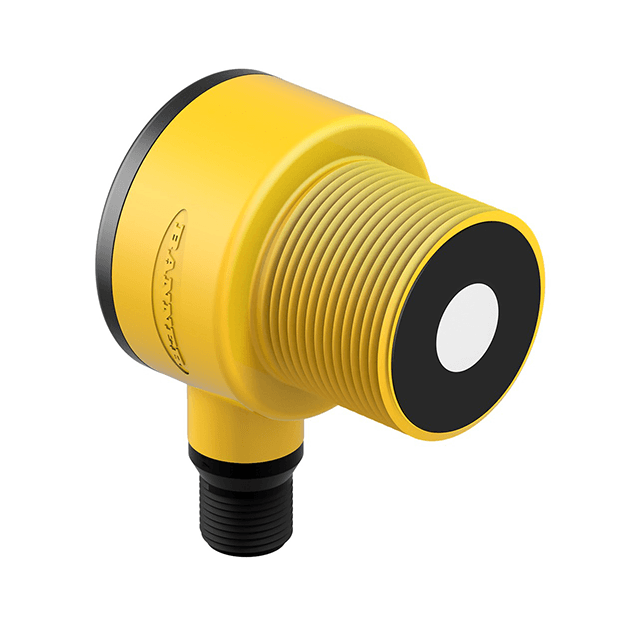

Ultrasonic sensor Diffuse-mode sensor
T30UXDCQ8
Order ID no. 3080460
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Connector type
M12 x 1
Construction size
⌀ 40 mm
Design
Tube

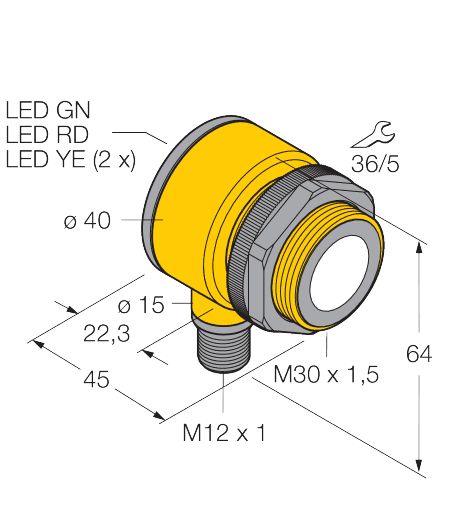

Dimensions
45 mm
Electrical connection
Connector
Function
Proximity switch
Housing material
Plastic
Housing quality
PBT
Max. range (mm)
3000
Operating mode
Time-of-Flight
Output function
PNP
Protection class
IP67
Radiation direction
straight
Special features
Clear object detection
Switching element function
normally open NO
Key Features
Electrical connection
Connector
home
Turck-Shop
Sensors
Ultrasonic Sensors
T30UXDCQ8
Output function
PNP
Max. range (mm)
3000
In Stock
Price Group
F3
List Price
501,00 EUR
Item Total
501,00 EUR
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
