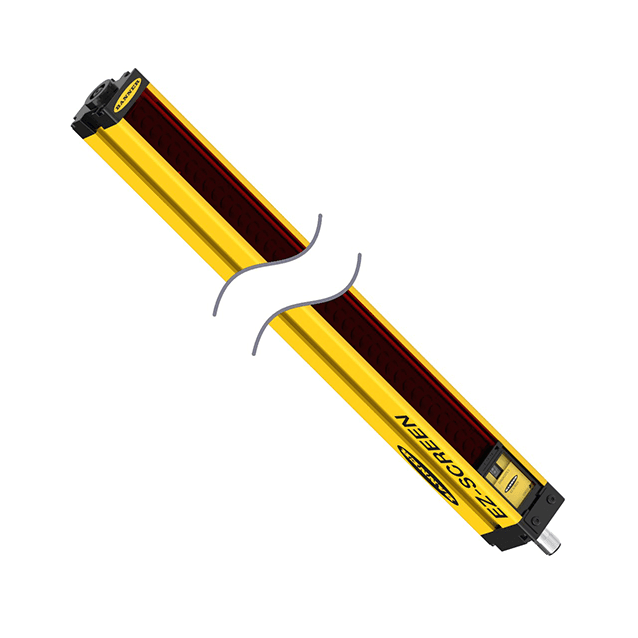

Safety Light Curtain Emitter
SLSE30-1800Q8
Order ID no. 3072378
In Stock
Price Group
F3
List Price
2908,00 EUR
Item Total
2908,00 EUR
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
0
Cascadable
No
Connector type
M12 x 1
Design
Rectangular

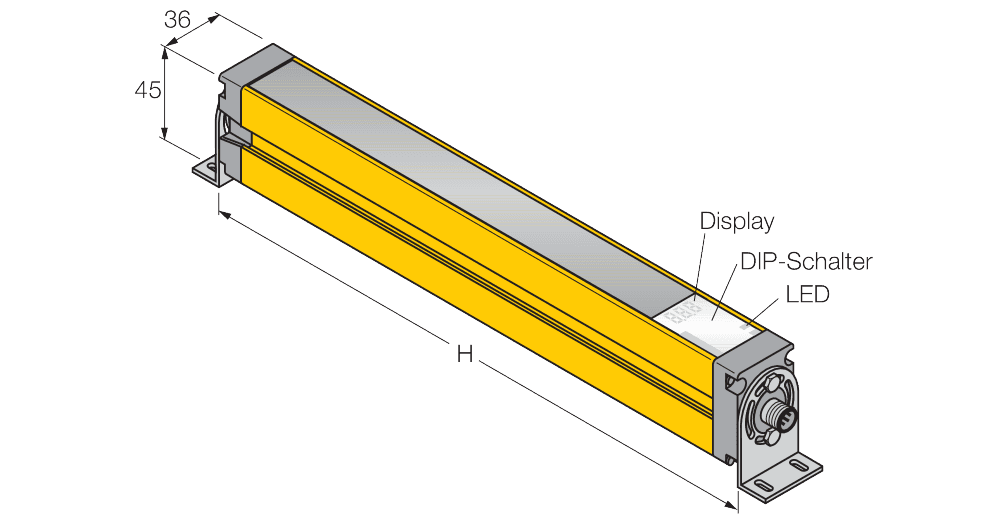

Dimensions
45 mm x 36 mm x 1869 mm
Electrical connection
Connector
Function
Light curtain
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Light type
IR
Max. range (mm)
18000
Number of beams
120
Optical resolution (mm)
30
Protection class
IP65
Scan field (mm)
1800
Start/Restart interlock
adjustable
Wavelength (nm)
950
With muting function
No
Key Features
Cascadable
No
Scan field (mm)
1800
Number of beams
120
Optical resolution (mm)
30
