Home
Products

Safety Light Curtain Emitter/Receiver Pair

LS2LP30-450Q88

Order ID no. 3073566

In Stock
Price Group	G1
List Price	1691,00 EUR

Item Total1691,00 EUR

Quantity

homeTurck-Shop
Machine Safety
Safety Light Curtains
LS2LP30-450Q88

Ambient temperature max. (°C): 55
Ambient temperature min. (°C): 0
Cascadable: No
Connector type: M12 x 1
Design: Rectangular

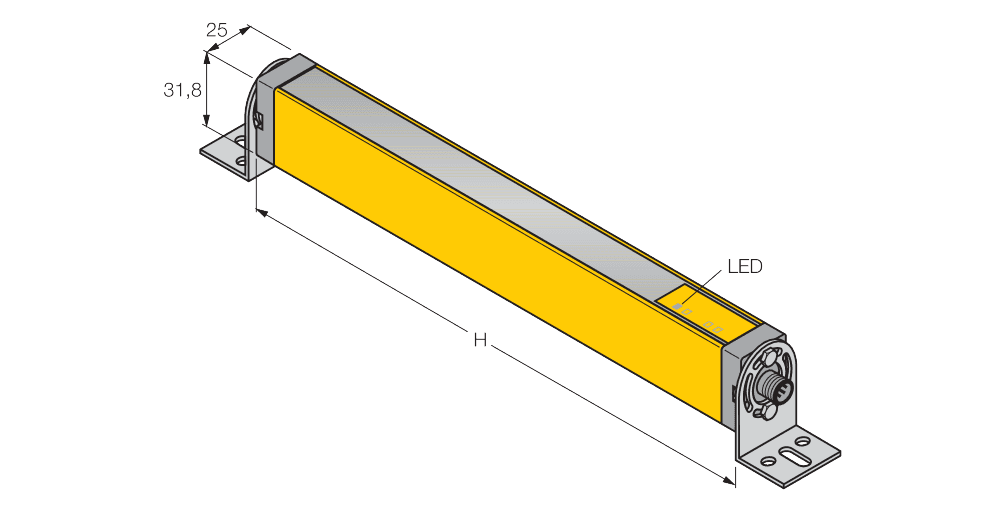

Dimensions: 31,8 mm x 25,2 mm x 515 mm
Electrical connection: Connector
Function: Light curtain
Housing material: Metal
Housing quality: AL
Housing surface: Yellow polyester
Light type: IR
Max. range (mm): 15000
Number of beams: 24
Optical resolution (mm): 30
Output function: 2 x PNP
Protection class: IP65
Scan field (mm): 450
Start/Restart interlock: yes
Switching element function: 2 x NC contact
Wavelength (nm): 950
With muting function: No

Key Features

Cascadable: No
Scan field (mm): 450
Number of beams: 24
Optical resolution (mm): 30
