Magnetic Field Sensor
BIM-INT-Y1X-H1141
Order ID no. 1056801
In Stock
Price Group
E1
List Price
€94.00
home
Turck-Shop
Sensors
Magnetic Field Sensors
BIM-INT-Y1X-H1141
Technical Data
Protection class
IP67
Output function
NAMUR
Cable length (m)
0.3
Cable color
Blue
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PP
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Operating voltage
DC
Construction size
32 x 5 x 6 mm
Cylindrical design
Tie-rod cylinder, Dovetail cylinder, external groove
Base unit
PCE
EAN/UPC code
4047101145410
Gross weight
38
Height
10
Length
100
Net weight
38
Dimension unit
MMT
Weight unit
GRM
Volume
100
Volume unit
CMQ
Width
100

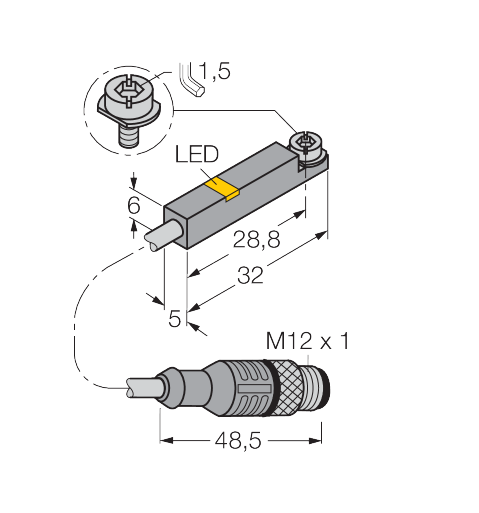

Dimensions
32 mm x 5 mm x 6 mm
Quality active face
PP
Switching frequency (kHz)
1
Key Features
Electrical connection
Connector
Cylindrical design
Tie-rod cylinder, Tie-rod cylinder, Dovetail cylinder, external groove
Output function
NAMUR
