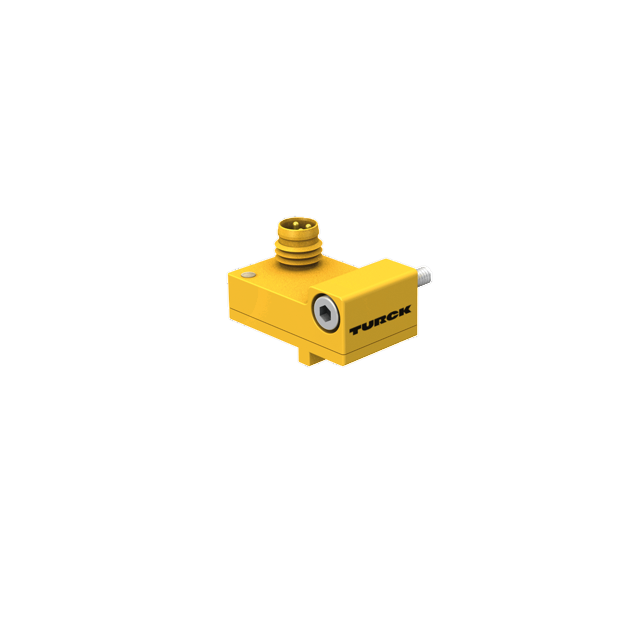

Magnetic Field Sensor

BIM-NST-Y1X-H1141

Order ID no. 1058600

Protection class: IP67
Output function: NAMUR
Design: Rectangular
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PA12-GF30
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC
Construction size: 28 x 17 x 14 mm
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder
Base unit: PCE
EAN/UPC code: 4047101064308
Gross weight: 27
Height: 20
Length: 60
Net weight: 27
Dimension unit: MMT
Weight unit: GRM
Volume: 24
Volume unit: CMQ
Width: 20

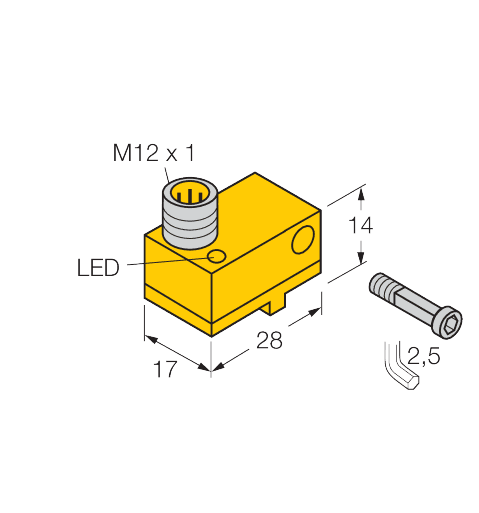

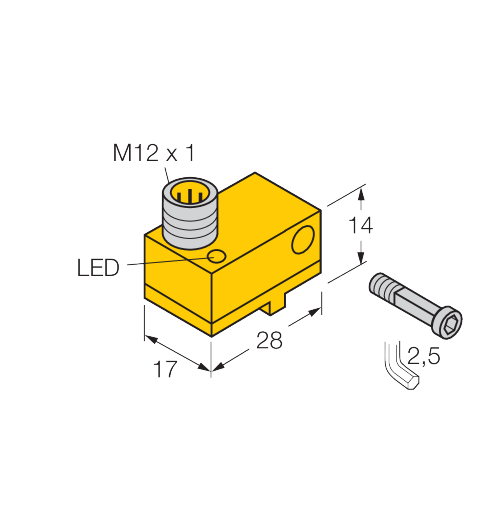

Dimensions: 28 mm x 17 mm x 14 mm
Quality active face: PA12-GF30
Switching frequency (kHz): 1

Electrical connection: Connector
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder
Output function: NAMUR
