BIM-EG08-Y1X-H1341 | TURCK - Your Global Automation Partner

Magnetic Field Sensor

BIM-EG08-Y1X-H1341

Order ID no. 1074001

homeHome
Loading...

Protection class: IP67
Output function: NAMUR
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless steel
Housing quality: 1.4427 SO
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC
Rated switching distance (mm): 78
Construction size: M8 x 1
Base unit: PCE
Special features: Magnetic-inductive
EAN/UPC code: 4047101145700
Gross weight: 24
Height: 10
Length: 100
Net weight: 24
Dimension unit: MMT
Weight unit: GRM
Volume: 100
Volume unit: CMQ
Width: 100

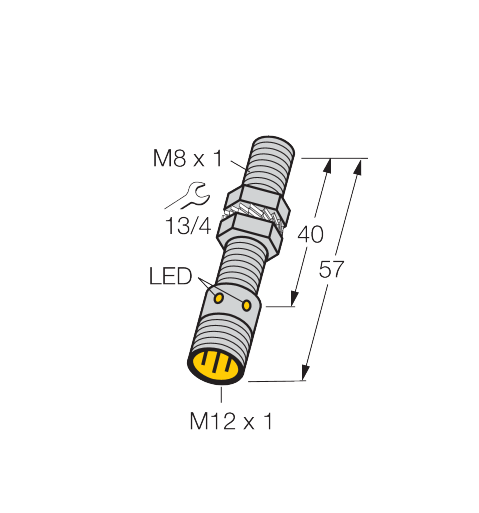

Dimensions: 8 mm x 57 mm
Quality active face: PA12-GF30
Switching frequency (kHz): 1

Key Features

Electrical connection: Connector
Output function: NAMUR

In Stock
Price Group	E1
List Price	€73.00
