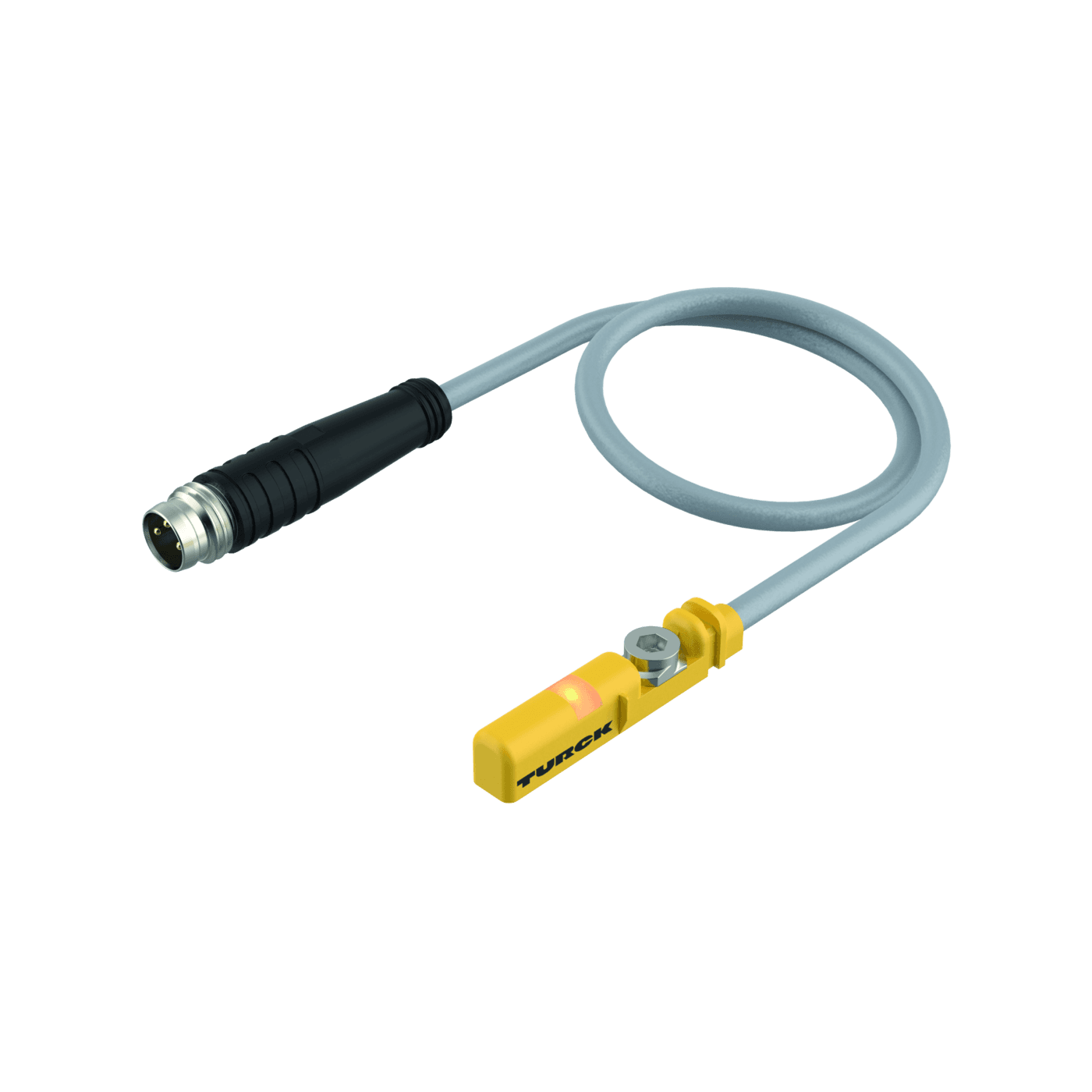

Magnetic Field Sensor

BIM-UNT-AP6X-0.3-PSG3S/3GD

Order ID no. 4685865

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.3
Connector type: M8 x 1
Cylindrical design: Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular

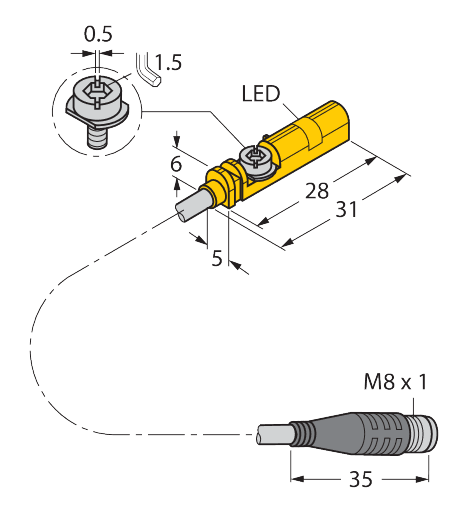

Dimensions: 28 mm x 5 mm x 6 mm
Electrical connection: Cable with connector
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: PNP
Protection class: IP67
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 1

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
